Lizard Xtreme | 830mm (32,7") | Offshore mono boat | Several versions
€255.00*
Content:
1 Piece
Preorder, shippment time: 18 - 43 labor days**
Product number:
1717-N-C-AFK
Shipping weight/volume:
4 kg

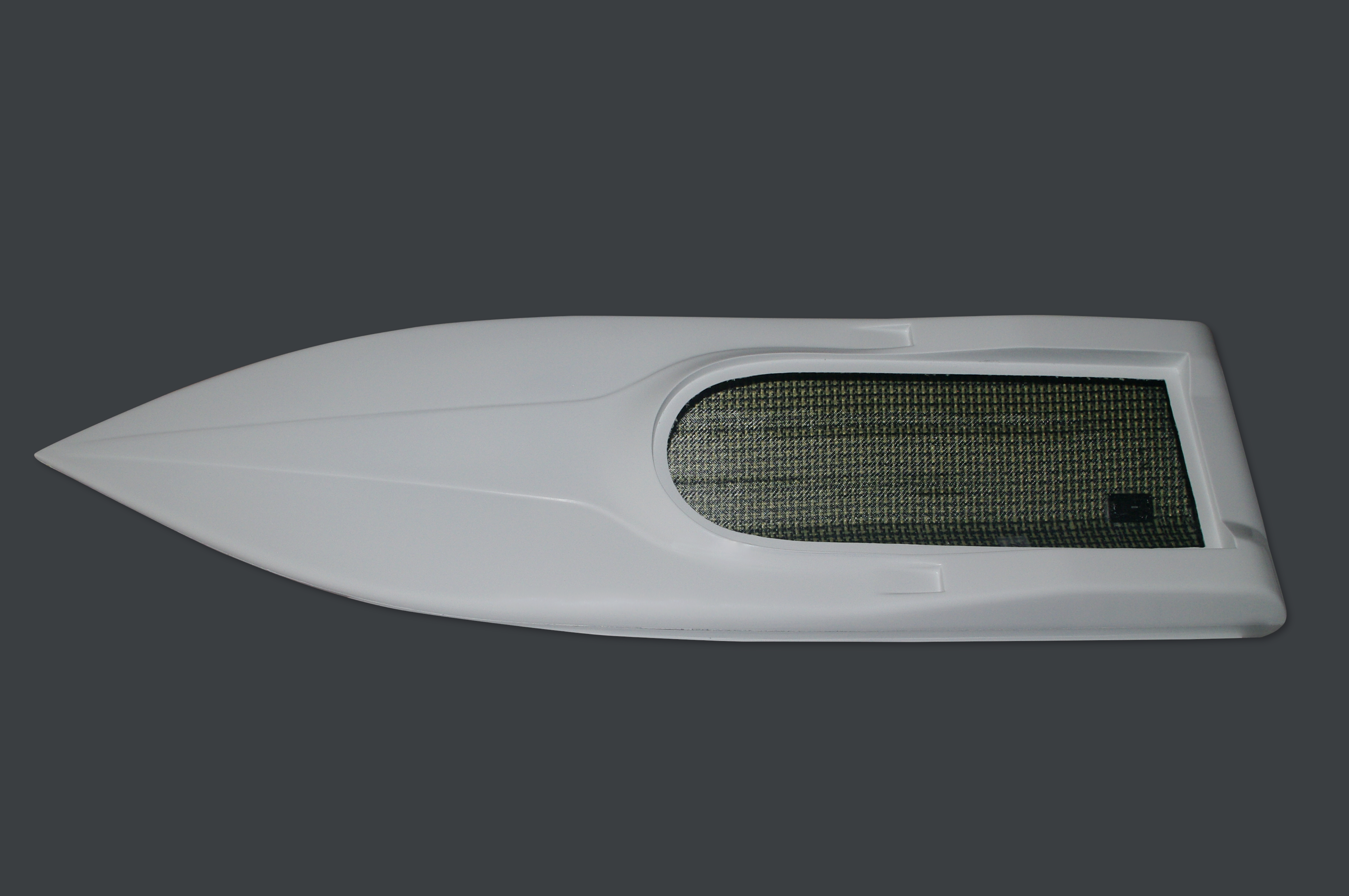

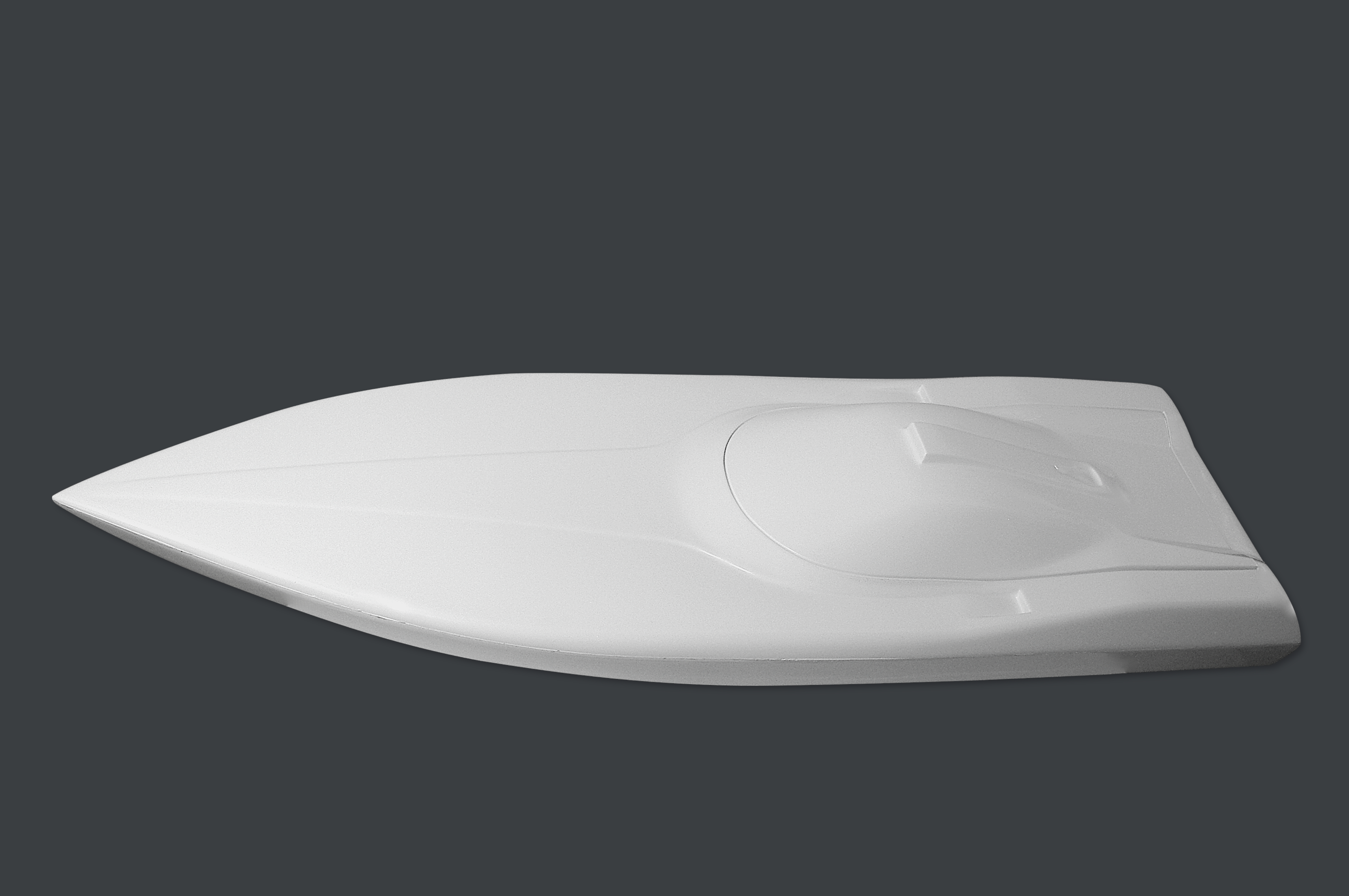

Product information "Lizard Xtreme | 830mm (32,7") | Offshore mono boat | Several versions"
Whether you are a beginner or a professional, everyone has fun with this boat.
The advantages at a glance
- Low construction costs | Short set-up time
- Small and manoeuvrable for optimal handling
- The water intake is already laminated into the hull | Would you rather have a double water intake? No problem, simply order item 1791 additionally
- If you like to add color to your white Lizard Xtreme you have the option to purchase our decal set which you can find here: 1717-N-D
- Suitable for 4.75mm flex shaft
- Suitable for inrunners and outrunners of the 30 and 40 series and 4-6S
Good to know
- The center of gravity is 26-30% from the stern
- This hull is available in different versions. In general, all of our hulls are manufactured using the sandwich "wet in wet" process (1 layer of 100er GFK + 1 layer of 160er C-AFK + 1 layer of 100er GFK).
Therefore, the upper and lower parts are directly connected to each other
Please notice that this product is not a ready to drive product.
Further this product is a model building accessories, therefore no toy.
Our hulls are all laminated by Hand. Air inclusions cant be avoided for that reason.
Videos
YouTube
Technical details
| Length: | 830mm (32,7") |
|---|---|
| Width: | 240mm (9,45") |
| Height: | 160mm (6,3") |
| Weight: | ca. 920g (approx. 2,02 lbs) |
| Material: | C-AFK (Carbon Aramid + Fibre glass reinforced plastic) |
| Color: | White |
| Center of gravity for assembly: | 26-30% from transom |
| Ride pad:: | No |
