Dragon Lady | Bundle Box | Semi scale Fountain 41 | Mono boat | 980mm (38,6")
€499.00*
% instead of €589.70* single purchase price (15.38% saved)
Content:
1 Set
Preorder, shippment time: 18 - 43 labor days**
Product number:
1755-D-BB-CAFK
Shipping weight/volume:
4 kg
Product information "Dragon Lady | Bundle Box | Semi scale Fountain 41 | Mono boat | 980mm (38,6")"
With the bundle box, the right parts are right at hand
With our bundle box, you have all the important installation parts for a quick and uncomplicated assembly at hand. Get on the water faster and save money (compared to the individual purchase price).
Assembling the Dragon Lady on your own also makes sure every item is placed just the way you want it.
In order to be able to support you even better with the assembly, we have provided you with an assembly example at the Downloads area. You may use this as a guide during assembly process. If you still have questions during assembly, you are welcome to contact us at any time.

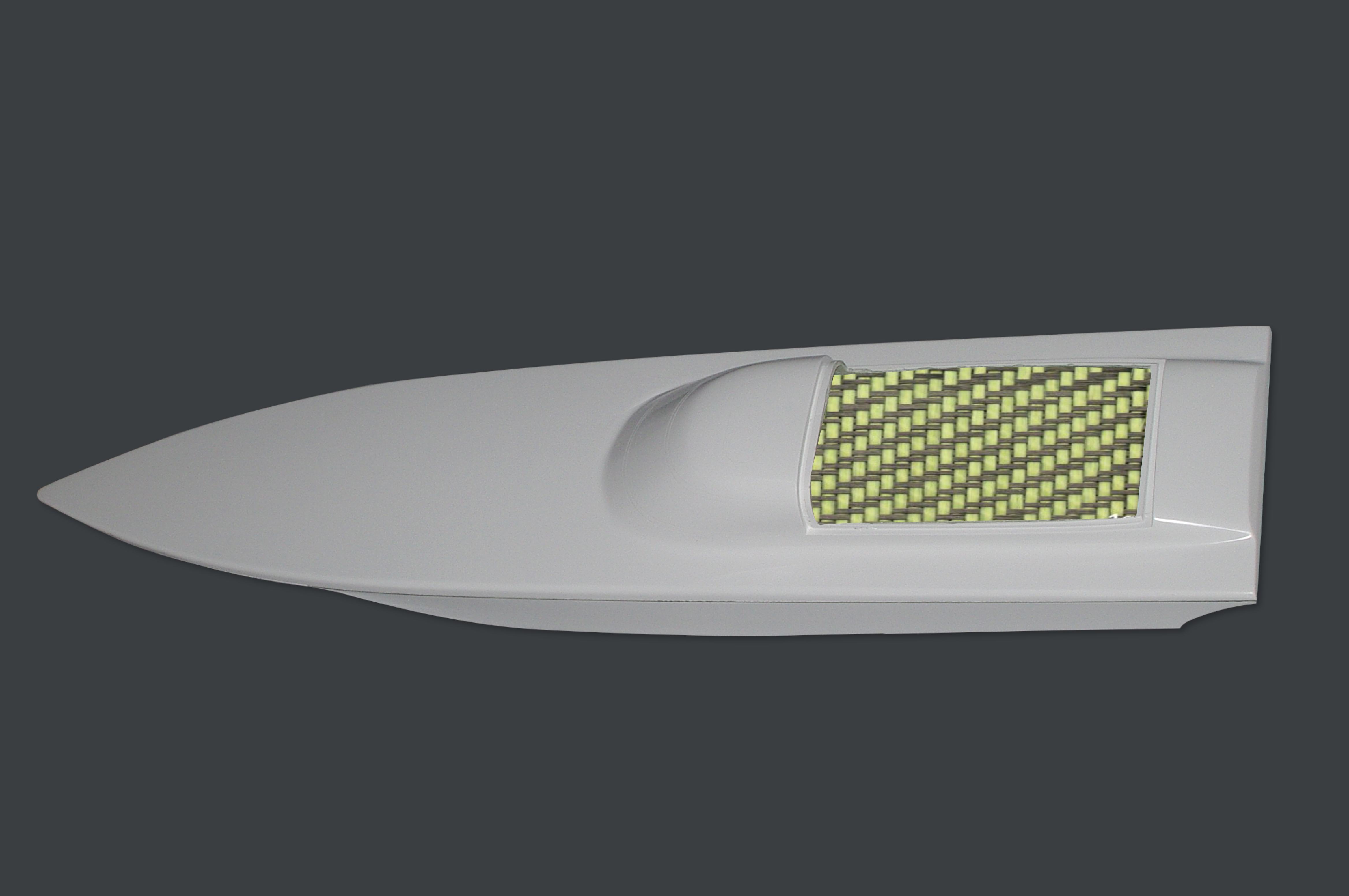

Semi scale replica of the Fountain 41
The Dragon Lady lives up to its name and combines fast-paced driving fun with classic design.
The Dragon Lady lives up to its name and combines fast-paced driving fun with classic design.
That's included
- 1x Dragon Lady | 1755-D-CAFK
- 1x Brass PTFE Tube | 1002
- 1x Flex shaft | 1090
- 2x Silicone hose | 1552
- 1x Linkage | 1833.1
- 2x Rubber cuff | 1648
- 1x Rudder Strut Set | 1070
- 1x Water inlet | 1791-D
- 2x Water outlet | 1795
- 1x Clip | 1556
- 1x Clutch 5 - 4.75mm | 1036
- 1x Hull transmission | 1070-1
- 1x Stern tube holder | 1012
- 1x Flex shaft security | 2254
- 1x Motor mount with ESC mount | 2412.2
- 1x Servo mount | 1674-AS2
- 2x Battery mount | 2128
The advantages at a glance
- Lateral stringers ensure stable handling and also serve as a tear-off edge
- Small and manoeuvrable for rapid driving fun
- Suitable for any water and for beginners as well as professionals
- Suitable for 4.75mm (3/16") rudder strut
- Suitable for 30 and 40 engines and 4-6 S
Good to know
- The center of gravity for building is 26-28%
- We recommend a distance between drive dog and drive body of 1,5mm
- Manufactured using the "wet in wet" sandwich process (1 layer 100 GFK + 1 layer 160 CAFK + 1 layer 100 GFK)
Please notice that this product is not a ready to drive product.
Further this product is a model building accessories, therefore no toy.
Further this product is a model building accessories, therefore no toy.
Our hulls are all laminated by Hand. Air inclusions cant be avoided for that reason.
Videos
YouTube
Technical details
| Length: | 980mm (38,6") |
|---|---|
| Width: | 210mm (8,27") |
| Height: | 170mm (6,7") |
| Weight: | ca. 1100g (approx. 2,43lbs) |
| Material: | GFK/ FRP (Fibre glass reinforced plastic) |
| Color: | White |
| Center of gravity for assembly: | 26-28% from transom |
